GRID WALL

Enquire
 Products
Description

The Grid Wall can be a double wall light or you can create a grid over your entire wall. For advice or assistance, get in touch.

Finish: Brass with Opal Glass

Material: Aluminum with Glass

Dimensions: Grid - Diam: 50mm x H: 200mm
Tube - L: 400mm

Wattage: 3W

Lumens: 390lm

Kelvin: 3000K

Grid 1: Single Connector

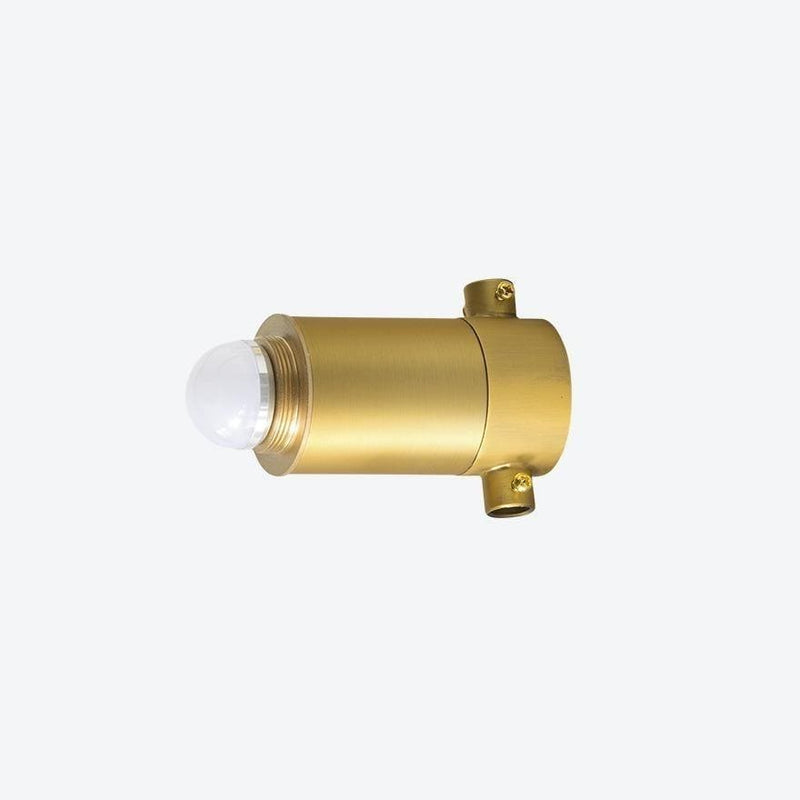

Grid 2: Double Straight Connector

Grid 3: Triple Connector

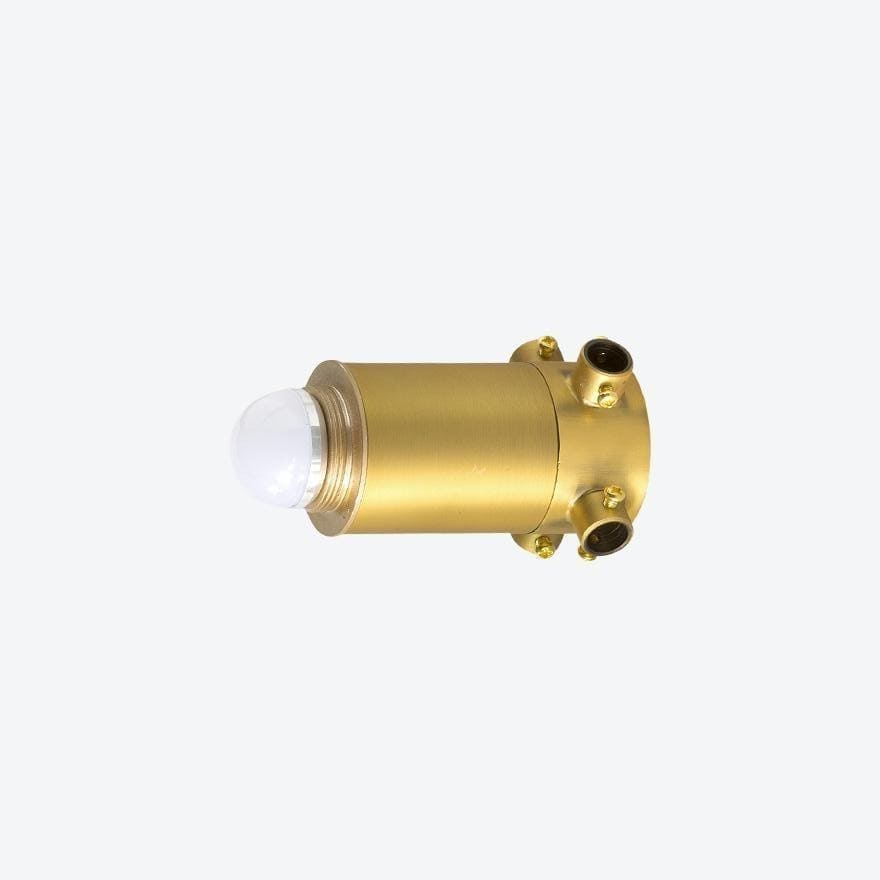

Grid 4: Quadruple Connector

Grid L: Double 90Deg Connector

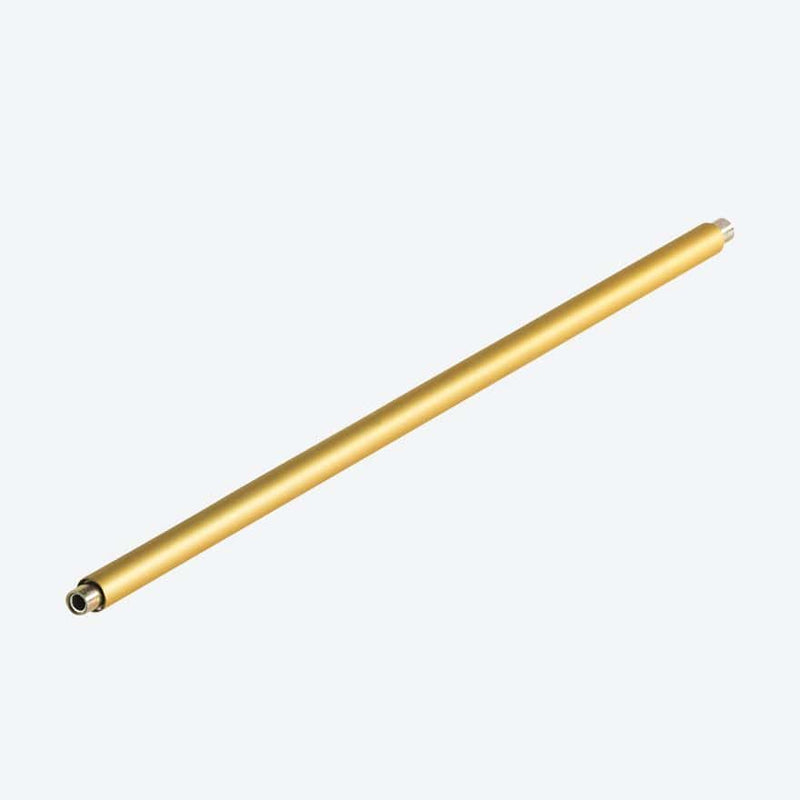

Grid Tube: 400mm Connector Tube

Drivers:
12W Output DC12V - to power up to 3 Grid lights 50x30x22mm
20W Output DC12V - to power up to 6 Grid lights 115x45xD28
36W Output DC12V - to power up to 11 Grid lights

Note: For variations of colour, Tube length, or anything else, get in touch.
Driver is required to power the Grid, this is an external driver.

Download Data Sheet
